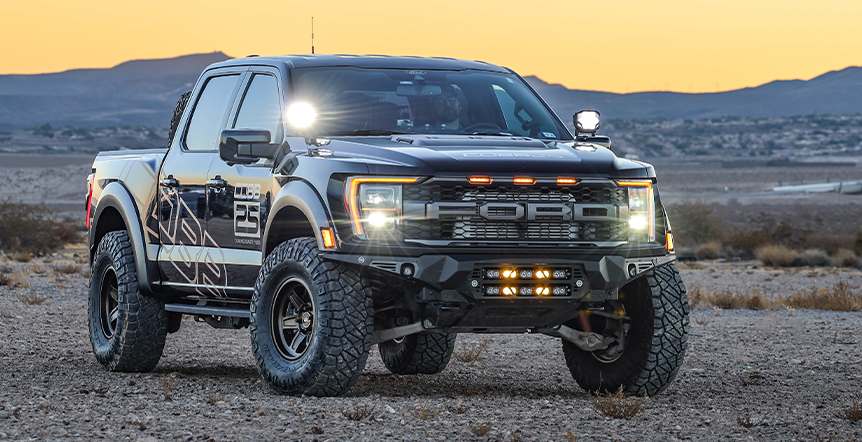

We are excited to offer Accessport tuning, bolt-on power upgrades, and Accesstuner Pro custom tuning support for Ford’s Gen 3 F-150 Raptor. Tuning support for the Gen3’s predecessor, the Gen2 Raptor, was released back in January of 2019. Much like the Gen2, the updated Gen3 is powered by a 3.5L Twin-Turbocharged V6 EcoBoost engine and is prime for tuning. Some slight tweaks by Ford do allow the newer trucks to make a bit more power, something we certainly aren’t complaining about. Full tuning support is available for the 2021-2023 Ford Raptor, including a 50-State Legal Accessport and Off The Shelf (OTS) maps as well as Accesstuner Pro to allow for custom tuning by any of our Authorized Protuners.
Trucks Supported
Full tuning support is available for the 2021-2023 Ford Raptor. COBB bolt-on performance upgrades are already available for 2024-2025 Raptor while we work on adding tuning support. Hit the link to your truck below to see everything we offer!
2021 Ford F-150 Raptor USDM
2022 Ford F-150 Raptor USDM
2023 Ford F-150 Raptor USDM
2024 Ford F-150 Raptor USDM
2025 Ford F-150 Raptor USDM
Accessport for Gen 3 2021-2023 Ford Raptor
The Accessport is the world’s best selling, most flexible, and easiest to use ECU tuning solution for your 2021-2022 Ford Raptor. It allows you to increase power by replacing conservative factory settings with more aggressive calibrations, and more! The Accessport is in-cabin mountable and has a large, full color, high-resolution screen which allows you to monitor up to six parameters in real time. It is fully customizable from the look (optional bezel colors), layout (set up race, street, or dyno gauge clusters), and mounting options (choose from 1,000s of standard vehicle mounts).
Both Engine and Transmission tuning are supported in one part number, the AP3-FOR-010.
The ECU Maps below are available in two flavors each, one for 91 octane fuel and one for 93 octane fuel. Power gains for 93 octane are displayed below, gains for 91 octane fuel are displayed on our Map Notes Page ( Stage 1 91, Stage 2 91, and Performance Tow 91).
For full details of each Performance Map, visit our Map Notes Page.
Power Gains
Transmission Tuning
One significant change to the Gen3 Raptor is the ECU/TCM configuration as they are now a combined unit, similar to the 2020+ F-150. One benefit of this is that the Accessport only needs to install onto one module instead of two, making installation time much quicker. What it also means is that map selection during install may be a bit different as each ECU Performance map is able to be flashed in conjunction with any of the available TCM maps.
Available TCM Maps
Simulated Stock
Factory transmission tune from 2021/2022 Raptor
COBB OEM+
Shift Points Modified
Moderately increased RPM limits on upshifts
Altered shift behavior for more responsive downshifts
Shift Firmness Modified
Moderately increased during high power/RPM shifts in Normal and Sport mode
Upshift Backout
Upshift inhibit (zero Accelerator pedal position gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.
Torque Limit Increases
Increased torque limits for more aggressive launches and acceleration
COBB Sport
Shift Points Modified
Moderately increased RPM limits on upshifts over OEM+ map
Altered shift behavior for even more responsive downshifts over OEM+ map
Shift Firmness Modified
Moderately increased during high power/RPM shifts in Normal and Sport mode
Upshift Backout
Upshift inhibit (zero Accelerator pedal position gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.
Torque Limit Increases
Increased torque limits for more aggressive launches and acceleration
COBB Custom Features
COBB Custom Features: Dynamic Pedal Control
Dynamic Pedal Control allows you to quickly adjust throttle pedal sensitivity easily. The system works by modulating from the throttle mapping found in your current drive mode (i.e. Drive/Normal, Mud/Sand, Sport) and some predetermined maximum and minimum sensitivity levels. Each step negative (-1 – -5) decreases throttle sensitivity which can help achieve better mpg, or a quick detune if someone less responsible is driving. When stepping positive (1-10) you’ll be making smaller pedal movements have a much bigger impact on the throttle which can help the car feel faster and more responsive.
COBB Custom Features: Tire Size Adjustment
Tire Sized Adjustment does just what it seems it would. This feature allows those with up-sized tires to apply a correction to the truck’s ECU and TCM to ensure accurate behavior and speed display.
Intake Scoop Bracket, aka ‘Torq Snork’
Introducing the COBB Intake Bracket, known internally as the “Torq-Snork”. This brace uses two pieces to sandwich the soft plastic snorkel to the core support, replacing the fragile plastic clips with hardware and preventing all deformation under load. All you need is a flathead screwdriver to pop the old clips out and the provided Allen key to secure the hardware.
We can frequently achieve reliable power and torque gains over the stock calibration without installing any physical modifications, but when developing our performance calibrations for the Gen3 Raptor, we noticed some interesting issues with the intake system after only adding a small amount of power.
The leading edge of the snorkel that rises from the lower airbox to overtop of the radiator core support is constructed of very soft, very thin rubber. Making things worse, a significant portion of the cross sectional area of this piece seals against the hood of the truck, making the actual airflow path pretty thin. This system works okay in factory form, but when turning up the boost we’ve seen it turn into a big problem and collapse under vacuum. In the dyno graph below you can see the difference between a clean pull (red) with the bracket in place and two pulls where a partial (green) and complete (blue) collapse occurs.
This collapse can lead to significant power loss and increased wear on engine components, namely the turbochargers, if not addressed. CLICK HERE for a complete technical write-up showing the effect this issue can have on your truck!
Gen 3 Raptor Upgrades & Stage Power Packages
Upgrading your Raptor doesn’t stop with the Accessport! Our team of engineers and calibrators have created some incredible bolt-on performance upgrades and tunes to support them. These parts and calibrations then fit into our Stage Power Packages which follows our recommended upgrade path for Ford’s EcoBoost engine.

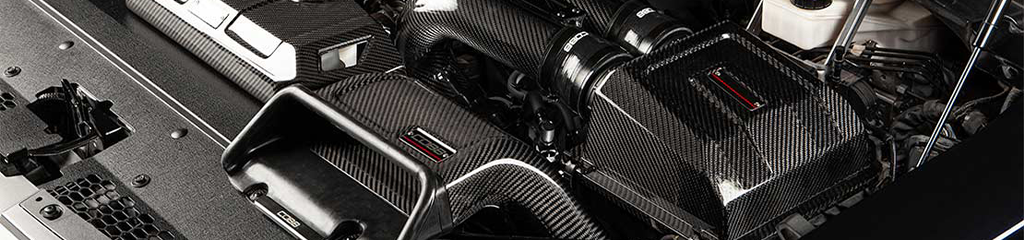

For intake upgrades, we offer two flavors – our standard Intake System as well as the Redline Carbon Fiber Intake. Performance wise, you can’t go wrong with either choice.
The next step in the upgrade path is an intercooler upgrade. We offer two options here as well, both a significant upgrade over the factory intercooler. First, our Factory Location Intercooler fits right into the same spot as the stock unit. It offers 70% more volume and 10% more cooling surface area than stock. For those Our Relocated Intercooler sits behind the truck’s grill and makes room for aftermarket bumpers.

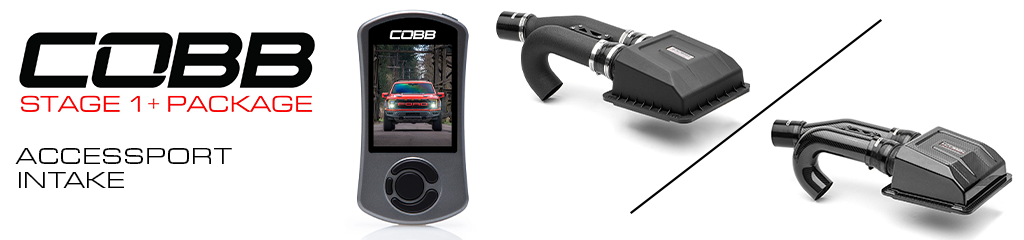

Our Stage 1+ Power Packages for the Ford F-150 Raptor include the Accessport and an intake upgrade. Choose between the standard or Redline Intake. Performance is the same with either variant of intake.
The COBB Stage 2 Power Packages for your Ford Raptor combine the power of the Accessport with the best bolt-on performance parts available. Again, choose either intake upgrade option for these packages. Both variants of our Intercooler upgrades are also offered, either Factory Location or Relocated.
More COBB Parts for your Ford Raptor
On top of the Accessport and Stage Power Packages, we do offer additional products for the Gen3 Ford Raptor! Anything from aftermarket off-road wheels by Titan7 to COBB branded WeatherTech Floor Liners as well as hitch accessories.
Compliance
As a company, COBB Tuning is proud to continue our leadership position in providing responsible, fun and compliant solutions. Our Customers and Dealer partners can be confident that our entire product catalog is fully emissions compliant. To date, we have received over 200 Executive Orders from CARB, along with multiple third-party emissions certifications. We will continue to drive the future of the aftermarket performance space.
